USB connector / rectangular / crimp / high-voltage
REDEL K/S series LEMO

{{requestButtons}}

Characteristics

  • Format:

    USB

  • Shape:

    rectangular

  • Connection type:

    crimp

  • Electrical characteristics:

    high-voltage

  • Product applications:

    board

  • Current:

    4 A

  • Voltage:

    Min.: 0 kV

    Max.: 12 kV

Description

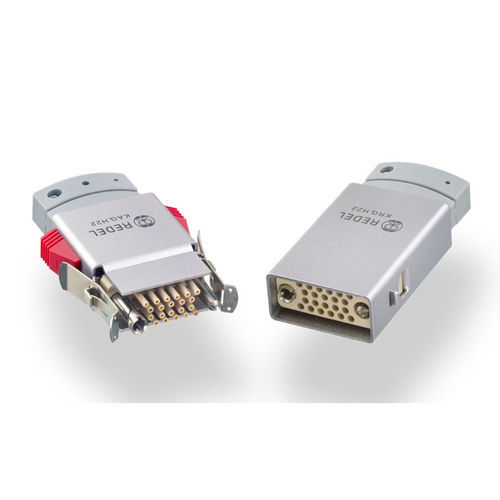

You are looking at a multi high voltage cable, which comes in two variants. First of all, the K series has 22 contacts included, while the S series comes with 51 contacts and is suitable for higher scale industry applications.

In terms of the features worth mentioning, the keying and the crimp contacts are important, but, at the same time, the temperature range supported is between -20°C and 125°C. Note that the test voltage is evaluated at 12kV D.C. and the item has also been tested according to the latest industry standards.
