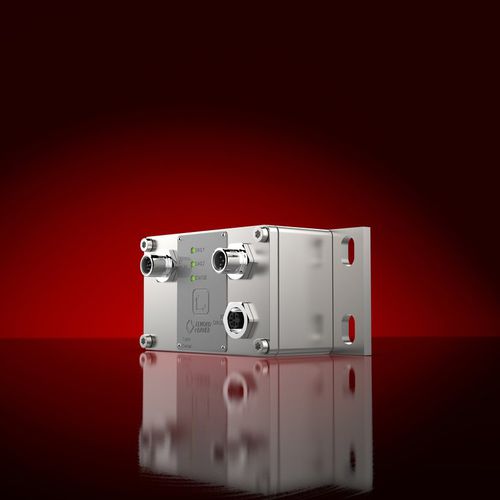

Speed monitoring system GEL 3011
for safetyfor wind turbinecompact

speed monitoring system
speed monitoring system
speed monitoring system
speed monitoring system
Add to favorites
Compare this product


Characteristics

Type
speed
Applications
for safety, for wind turbine
Configuration
compact
Other characteristics
measuring system, triaxial

Description

General  3-axis tower oscillation monitor in compact design  Redundant system with two independent CPUs and two oscillation monitors arranged at 45° to each other  Two integrated safety relays with mechanically interlocked contacts as per EN 50205 class. A switch on reaching the adjustable limits  Maintenance and wear-free operation due to MEMS acceleration sensors  Measuring system is not subject to ageing, is insensitive to temperature fluctuations, dirt or condensation  Trigger criterion either evaluation of the geometric sum of the limits or axis-related evaluation  Unambiguous hole pattern in the base plate identifies the mounting position  Full function in case of condensation: dew-point resistant! Features  Measuring direction X, Y and Z  Resolution 0.01 m/s2  Extended temperature range -40 °C to +85 °C  Interfaces: - CANopen - Factory-adjusted safety relay outputs  Protection class IP 67  Maximum installation altitude 4000 m  Performance Level PLd as per DIN EN ISO 13849 Advantages  Appropriate for safety application with PLd requirement as per DIN EN ISO 13849 Field of application  Wind power 3-axes tower oscillation monitor in compact design Redundant system with two independent CPUs and two oscillation monitors arranged at 45° to each other Appropriate for safety application with PLd requirement as per DIN EN ISO 13849 (SIL2)
