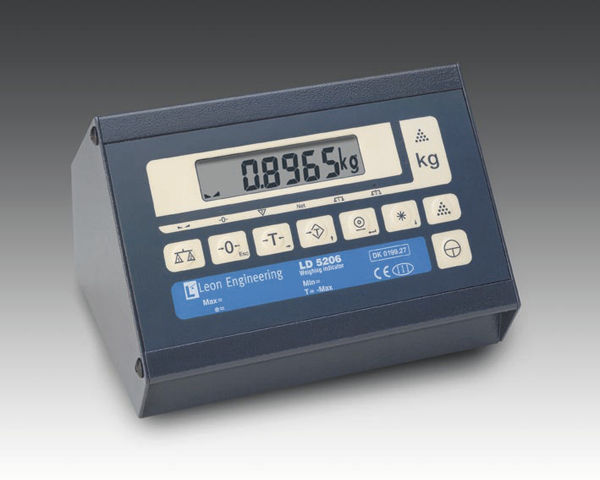

Weight indicator
IP65 | LD5204,06 Leon Engineering SA

The weighing indicators LD5204, LD5206 are versatile, general purpose weight indicators, manufactured according to the highest quality standards. User friendly, simple and fast in operation, with an attractive stainless steel design and sophisticated hardware and software features, the LD5204, -06 models represent powerful solutions to a multitude of weighing applications.
Basic Features

* Approved for 10,000divisions
* Up to 70 measurements per second
* Alibi-memory for 10,000 records
* Excitation for up to 10 strain gauge load cells, 350Ω each (or more)
* Large, 6 digit LED (20mm) or LCD (16mm) display with status anounciators
* 8 keys membrane keyboard with tactile feedback
* Single or dual interval / range
* Analogue and digital ltering
* Standard RS232 for PC or printer connection
* 1 digital input (programmable as tilt input or to tare scale remotely or for other purposes)
* 2 digital outputs (programmable as weight set points or as other control outputs)
* Stainless steel enclosure (IP65) or powder coated aluminium (IP40)


* Bench and oor scales, weighbridges and dual scale applications requiring weight indication and professional documentation
* Silo weighing – weight indication and data collection
* Piece counting (single or dual scale congurations)
* Computer based weighing systems
