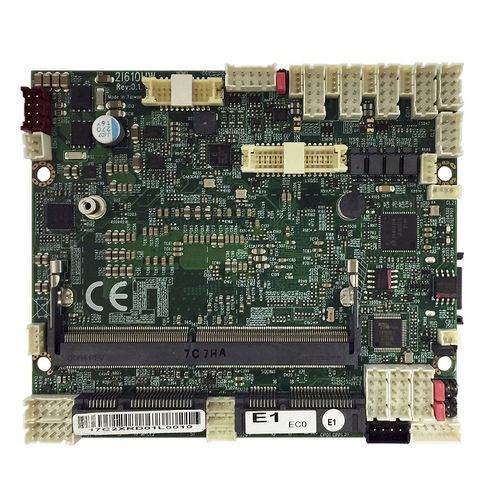

2.5" SBC 2I610HW
Intel® Celeron®Intel® Skylake ProcessorMini PCIe

2.5" SBC
2.5" SBC
2.5" SBC
2.5" SBC
Add to favorites
Compare this product


Characteristics

Form factor
2.5"
Processor
Intel® Celeron®, Intel® Skylake Processor
Extension slot
Mini PCIe, SATA
Connectivity
USB 2.0, USB 3.0
Other characteristics
embedded, compact

Description

LEX Computech released the next generation 2.5" (102 x 88 mm) motherboard 2I610HW powered with Intel® Skylake-U / Kaby Lake-U processor & offered the ideal platform for high performance applications. 2I610HW's all wafer IO design delivers high flexibility toward expanded functions and also provides user hassle-free solution of integrating the SBC board within various mechanical enclosures. The compact size feature makes 2I610HW well suited for many space-limited and thermally constrained embedded applications, such as Automation Control, In-Vehicle, Military, Smart Factory, Industry 4.0 and Robot Technology solution. Ideal solution for space-limited embedded Applications Intel® Skylake-U/Kaby Lake-U i7 /i5 /i3 /Celeron SoC CPU / chipset 1 x DDR4 SODIMM socket, max. up to 16 GB Display Interface: HDMI, VGA & LVDS 2 x Intel (I210 IT) GbE, 2 x Mini PCIe, 4 DI/4DO, Touch Screen 7 x USB (4 x USB 3.0/2.0 + 3 x USB 2.0), 2 x COM (RS232/422/485) Wide Range DC IN +9~36V Wide temperature support of -20°C ~ 70°C
