digital pressure indicator / differential pressure / laboratory / calibration

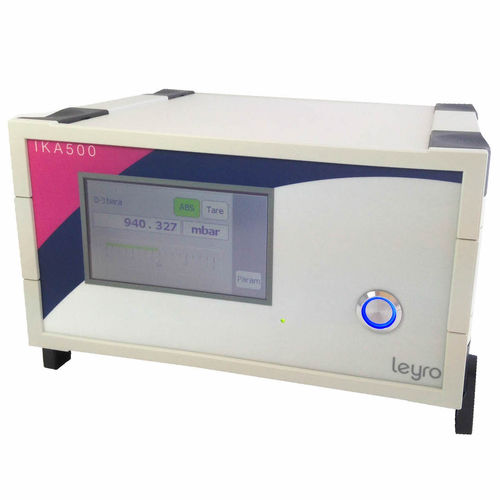

IKA 500 Leyro Instruments

{{requestButtons}}

Characteristics

  • Display:

    digital

  • Technology:

    differential pressure

  • Applications:

    laboratory, calibration

  • Other characteristics:

    precision, high-accuracy

  • Pressure:

    Max.: 1,000 bar (14,503.77 psi)

    Min.: -1 bar (-14.5 psi)

Description

This machine is equipped with up to two modular precision sensors and an optional barometric reference. It is primarily used as transfer / working standard for the testing resp. calibration of diverse pressure measuring instruments. Calibration software DCal allows comfortable calibration of pressure measuring instruments. It also has a Digital precision pressure indicator IKA 500. Due to an optionally certified measurement inaccuracy of 0.01 % FS, differential pressure of ± 0.03 % FS of the entire measuring chain.
