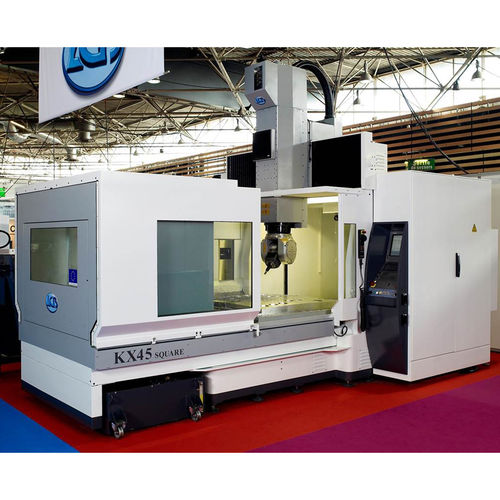

3-axis CNC milling machine KX45 Square GV1verticalwith fixed portalfixed-bed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal, fixed-bed, with moving table
- Spindle mount
- HSK-63-A
- Number of tool stations
- 24 tools
- Applications
- cutting, for the mold industry, for automatic tool changers, for matrices
- Other characteristics
- high-speed, high-precision, high-performance
- X travel
1,500 mm
(59 in)- Y travel
1,500 mm
(59 in)- Z travel
600 mm
(24 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
20 kW, 25 kW, 51 kW
(27.19 hp, 33.99 hp, 69.34 hp)- Work feed X-axis
40,000 mm/min
(26 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Tool weight (max)
5 kg
(11 lb)- Tool-changing time
8 s
- Weight
15,000 kg
(33,069.34 lb)- Overall length
5,000 mm
(196.9 in)- Overall width
3,500 mm
(137.8 in)- Overall height
4,150 mm
(163.4 in)
Description
The portal structure of the machine (mobile table, fixed bed, portal and traverse) enables increased stability and rigidity which are enhanced by controlled thermal stabilization.The “X”, “Y” and “Z” axis are equipped with SCHNEEBERGER roller guides which ensure high accuracy in the positioning of the axes.The HEIDENHAIN pack including a CN IT 530 HSCI, absolute linear encoders, motors for axis and variators enables high speeds and excellent cutting accuracy in roughing and in finishing thanks to the perfect interaction between HSM algorithm of the digital control and different machine parts.The combination of each elements of this machine provides high performance.
This new “GV” range was developed in close cooperation with our clients and our partners in order to meet machining requirements in the field of tool making (mold design, matrices and models), production of parts for aviation and car industry as well as for high precision mechanics products.
