Wastewater pump D3672 series
electricsubmersiblecentrifugal

wastewater pump
wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Fluid
for wastewater
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
discharge, control, macerator
Material
stainless steel, steel, PVC
Voltage
230 V
Other characteristics
standard
Power

2 ch
(2 hp)

Weight

Min.: 515 lb
(233.6 kg)

Max.: 536 lb
(243.13 kg)

Description

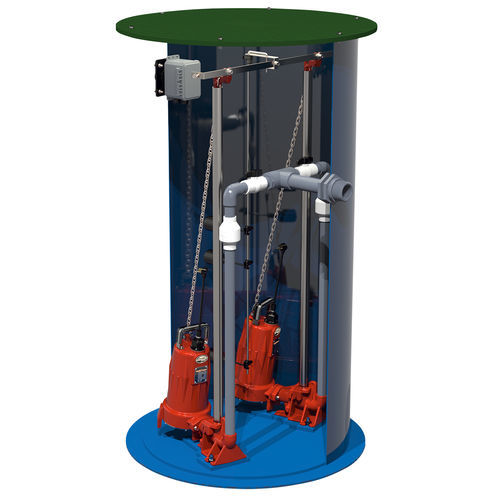

For residential and commercial applications, the D3672LSG is a complete factory assembled duplex grinder package featuring LSG200-Series 2 hp Omnivore® grinder pumps. All internal brackets, floats, guide rail base and discharge piping are pre-installed at the factory saving hours of labor at the job site. Features Factory assembled duplex grinder package with 36" X 72" fiberglass basin with anti-flotation collar 2 hp Omnivore® grinder pumps available in various voltages Available in single or 2-stage 4" inlet hub Galvanized guide rail piping (stainless optional) Factory pre-assembled guide rail system Factory pre-assembled Schedule 80 PVC discharge piping with ball valves and check valves Fiberglass basin with anti-flotation collar Standard green fiberglass cover, solid (optional black steel, solid) All stainless steel supports and brackets pre-mounted Matching duplex control panel included
