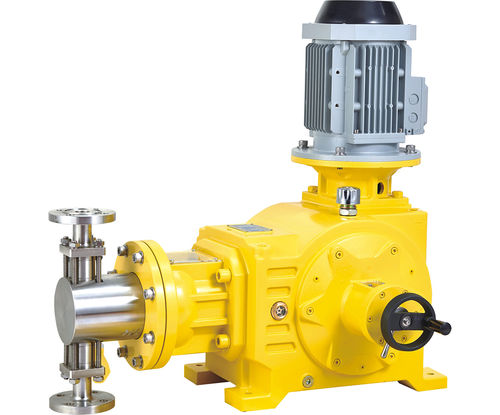

Wastewater pump JSD series
for chemicalswith electric motorplunger

wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Fluid
for wastewater, for chemicals
Operation
with electric motor
Technology
plunger
Domain
industrial
Applications
metering, cooling, high-pressure
Material
ceramic, PTFE
Other characteristics
heating
Flow

Min.: 23 l/h
(6.07596 us gal/h)

Max.: 3,600 l/h
(951.01939 us gal/h)

Pressure

Min.: 6 bar
(87.023 psi)

Max.: 500 bar
(7,251.887 psi)

Power

3 kW
(4.08 hp)

Description

Reliable High Pressure Plunger Metering Pump JSD Capacity range 23-3000lPh, 6-500bar JSD series plunger/piston metering pump is designed for big flow and high pressure dosing. The Max pressure can up to 50Mpa. The liquid end is coated ceramic from SS316 piston. The plunger packing seal is PTFE compressed by SS316 gland ring to grantee the high pressure and for extended life with minimal leakage. JSD motor can be both vertically and horizontally mounted. Multiplex gear boxes with one motor drive and pump base is available. Features: l Flow rate can be adjusted via unique adjusting mechanism from 0-100% l The adjustment can be carried when pump is in operation or at stop l The metering reproducibility is within ±1% from 30%-100% of the maximum output l Automatic operation is achieved by variable speed drive l Special application for high temperature or low temperature is available with cooling jacket or heating jacket Materials: l Pump head: SS304,SS316 l Pump case: Cast Iron l Plunger: SS316 coated with ceramic l Packing seal: PTFE and SS316 Ring l Valves: SS304,SS316 l Valve Ball: SS304,SS316, Ceramic
