DC motor Silverpak 23C
stepper24 V12 V

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
stepper
Voltage
24 V, 12 V, 36 V, 18 V
Configuration
NEMA 23
Number of poles
2-pole
Other characteristics
with integrated controller, integrated-drive, programmable

Description

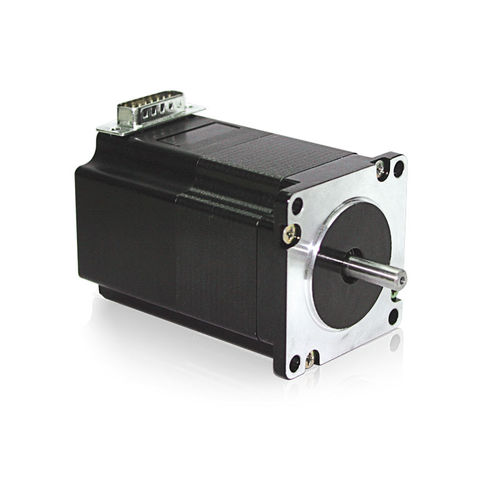

The SILVERPAK 23C, manufactured by Lin Engineering, is a DC electric motor with integrated controller. This device offers a holding torques of up to 294 oz-in in input voltages from 12 V up to 40 V DC. The phase current ranges from 0.3 up to 3.0 Amps. It is equipped with an RS485 interface with optional converter cards available upon request. This component offers four user-configurable digital I/O's and two dedicated inputs. One input is an optical sensor for homing, while the other is a switch closure to ground.
