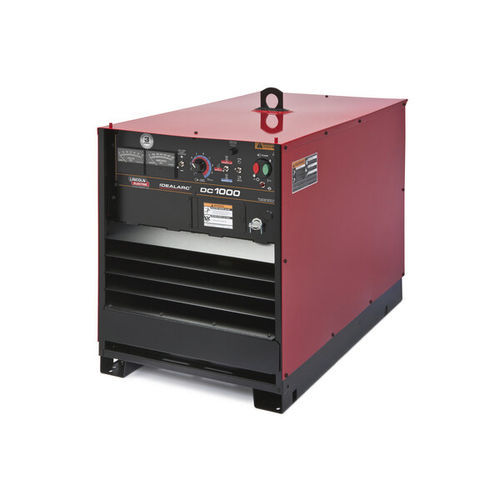

Submerged arc welder Idealarc® DC-1000
three-phaseDCsemi-automatic

submerged arc welder
submerged arc welder
submerged arc welder
submerged arc welder
Add to favorites
Compare this product


Characteristics

Technique
submerged arc
Power supply
three-phase
Output current
DC
Other characteristics
semi-automatic, rectifier
Intensity

Min.: 150 A

Max.: 1,300 A

Description

Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding. DETAILS Industrial DC Multi-Process Welder The DC-1000 offers 1300 amps of smooth DC output, combining pure welding power with multi-process flexibility for semiautomatic and automatic welding. • 500 amp output connections - provide enhanced arc characteristics for low amperage submerged arc and MIG welding procedures. • Single range control - for precise output control and easy operation. • Terminal strip and output studs - for remote connections and cable. • Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space. • Removable side panels - for easy access to internal parts. • Internal components - including windings, rectifiers and circuit boards, are coated to protect against the effects of moisture and corrosion. • Seven-year warranty - on power rectifier. Features • The Idealarc DC-1000 welder for submerged arc applications offers multi-process flexibility for semiautomatic and automatic welding. • 500 amp output connections for excellent performance at lower amperages. • Single range control - for precise output control and easy operation. • Terminal strip and output studs - for remote connections and cable. • Low profile case - allows installation under a workbench and for stacking up to 2 machines to conserve floor space.
