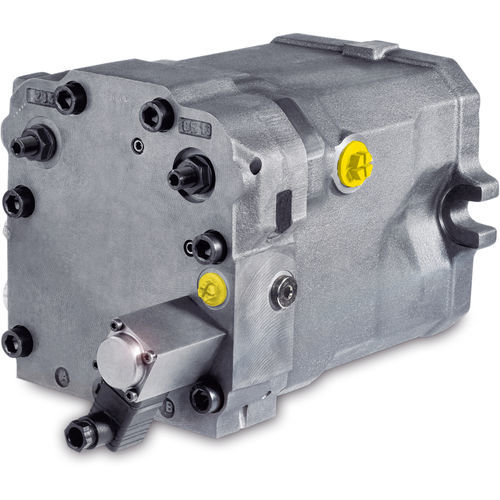

axial piston hydraulic motor / variable-displacement
HMV-02 series LINDE HYDRAULIC

{{requestButtons}}

Characteristics

  • Technology:

    axial piston

  • Other characteristics:

    variable-displacement

  • Torque:

    Max.: 1,122 Nm (827.54 ft.lb)

    Min.: 218 Nm (160.79 ft.lb)

  • Rotational speed:

    Max.: 5,300 rpm (33,300.88 rad.min-1)

    Min.: 2,400 rpm (15,079.64 rad.min-1)

  • Pressure:

    420 bar (6,092 psi)

  • Displacement:

    Max.: 280 cm³ (9 fl us oz)

    Min.: 55 cm³ (2 fl us oz)

Description

Product advantages
jerk-free low speed
high starting torque
large conversion range
zero angle possible
dynamic response
PTO Through-Drive Motor
compact design
high power density
high reliability
long service life
Design characteristics
axial piston motor in swashplate design for high pressure closed and open loop systems
optimized starting and low speed behaviour
purge valves for circuit and case flushing optional
stepless or 2-position control
electric or hydraulic controls
superposed pressure control optional
brake pressure shut off optional
swashing to 0 cc/rev
high pressure relief valves available
through shaft with free shaft end or with coupling flange
SAE high pressure ports radial or axial
SAE mounting flange with ANSI or SAE spline shaft
plug-in version optional
speed sensor optional
double motor available
