truck-mounted crane / telescopic / boom / rough terrain

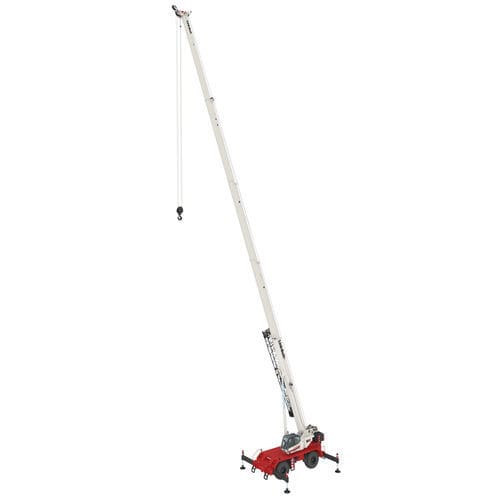

100|RT Link-Belt



  • Configuration:


  • Structure:

    boom, telescopic

  • Operating environment:

    rough terrain

  • Lift capacity:

    100,000 kg (220,462 lb)

  • Working height:

    Min.: 12.3 m (40'04")

    Max.: 47.2 m (154'10")


Key Features
Boom length and capacity outreaches/outlifts all competition
Simple operation - two boom extend modes
Link-Belt Pulse 2.0 - total crane operating system with V-Calc and telematics
Counterweight consists of three 9,600 lb (4 354.5 kg) counterweights for multiple transport and lift scenarios
Four fly options feature four offset positions of 0°, 15°, 30°, and 45°
Boom wear pads have Teflon pucks that lubricate the boom sections (no grease)
Full LED lighting package with three on-board cameras
Transports at under 93,000 lbs | 42 185 kg
0 - 20 degree tilting cab
Bluetooth AM/FM radio with auxiliary input
Time delayed wipers
Internal rated capacity limiter light bar
Integrated air conditioning with Automatic Temperature Control - Standard
New single and dual axis electronic controllers
All gauges and switches are back-lit for superior visibility in low light conditions
24 volt electrical system
Greaseless 4-Link suspension on the rear axle with an optional Hydro-Gas Ride™ system
4 steering modes
Full-length flat deck with integrated steps and handholds
