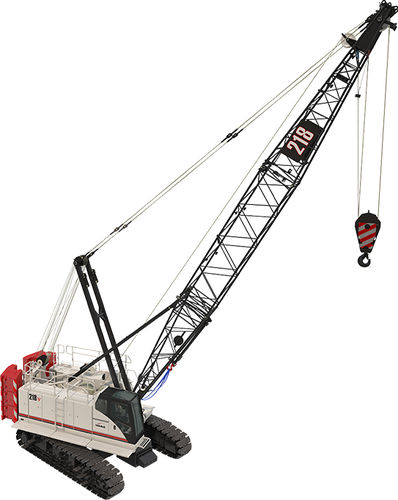

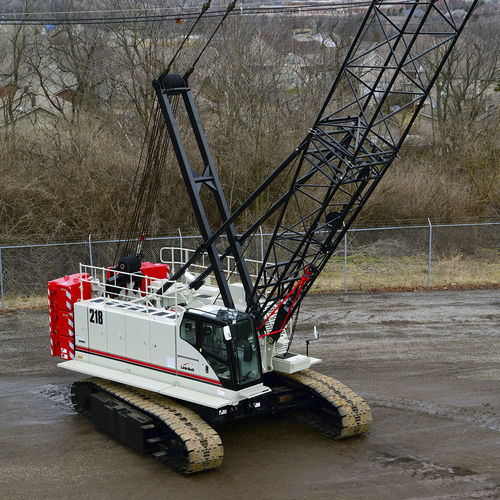

Crawler crane 218 HSL

boomlatticefor construction

• Base Rating : 110 US-ton @ 11' Tube Boom • Boom Lengths : 40'-230' (w/10' incr.) • Fixed Jib Lengths : 30'-75' (w/15' incr.) • Fixed Jib Offsets : 5, 15, & 25 degrees • Maximum Tip Height (Fixed Jib) : Tube = 279' • Engine Make & Model : Cummins QSB 6.7 Tier 4 Final • Horsepower : 270 hp @ 2000 rpm • Maximum Hoist Pull / Speed : 44,565lbs / 356 ft/min • Counterweight Option 5 : 62,820lbs Upper + 22,200lbs lower • Working Weight : 192,735lbs • Main Transport Load : 99,960lbs Heavy-duty power for the most demanding jobs •Robust engine with total horsepower control provides unbeatable line speeds under load. • Multi-disk wet brakes for smooth load control. Virtually no friction drag from the planetary. Thousands of hours of duty cycle operation expected without maintenance or adjustment. • High travel torque • Six pump main hydraulic package provides smooth performance. • 26 mm rope on front and rear hoists with automatic pawl and grooved lagging. • Matched front & rear drum performance with 44,565 lbs (20 214 kg) line pull. • True gravity freefall for cycle-type work and pile driving. Options include: • Third drum features controlled free spooling capability for pile driving applications or power up/down as auxiliary hoist line for luffer application. • Rear mount fourth drum — identical in to main and auxiliary winches.
