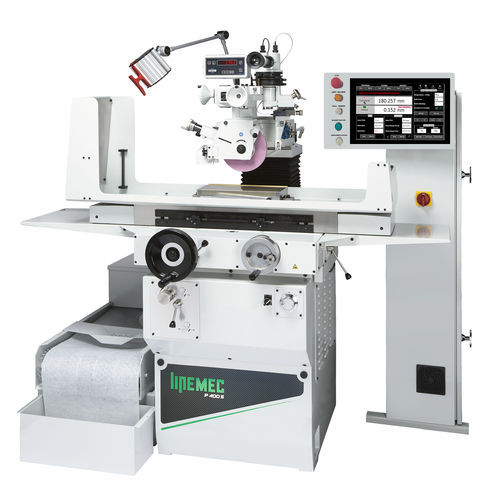

Surface grinding machine P400

toolCNChigh-precision

This machine, with three versions, provides excellent possibilities for grinding precision surfaces and profiles of medium batch production. The simplicity of its conception, the robustness of its construction and the softness of the shifting elements provide quality surface finish and excellent dimensional and shape precision. Its easy handling and ergonomy make this grinder pleasant for daily use. • Manual longitudinal and transverse movements with positive lock. • Vertical feed by hand, with rapid power positioning. Model PLH400 as PM400 with the following additions : • Automatic longitudinal movement with steplessly adjustable variable speed. • Safety between manual and automatic movements. Model PLTH400 as PLH400 with the following additions : • Automatic transverse movement by motor with a variable speed. CHARACTERISTICS - Vertical travel: - 385 mm Table: - Table working area: - 380 x 155 mm Wheel holding spindle: - Wheel standard dimensions: - Ø200 x 20 x 32 mm Net weight: - Machine without accessories: - 720 à 1000 kg
