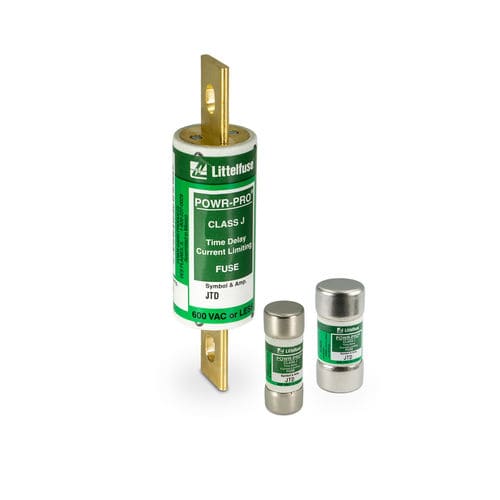

Blade fuse JTD series
compacttime delaycurrent-limiting

blade fuse
blade fuse
blade fuse
Add to favorites
Compare this product


Characteristics

Configuration
blade, compact
Type
time delay, current-limiting
Class
Class J
Applications
for electric motors, for transformers
Amperage

Max.: 600 A

Min.: 0.8 A

VAC

600 V

VDC

300 V, 500 V

Description

The JTD Series time-delay, dual-element fuses carry the Littelfuse POWR-PRO® advanced technology designation and are specifically designed for circuits where space is at a premium. They are ideal for use in systems with high in-rush currents. The JTD fuses offer a patented design that reduces nuisance fuse openings. In addition, they provide Type 2 “No Damage” protection for both NEMA- and IEC-type motor circuit components. These fuses help lower the costs associated with downtime, provide longer fuse life by minimizing nuisance openings, increase system performance by minimizing equipment damage, and improve safety by minimizing accidents. The POWR-PRO performance brand offers advanced technology protection features, such as self-certification to 300,000 A rms symmetrical and superior current-limiting capability. The self-certification at 300,000 A meets the current trend toward higher short-circuit current ratings (SCCR). Self-certification testing was conducted at a nationally recognized testing laboratory, and the tests were UL witnessed. • POWR-PRO® technology • Dual-element • Patented design
