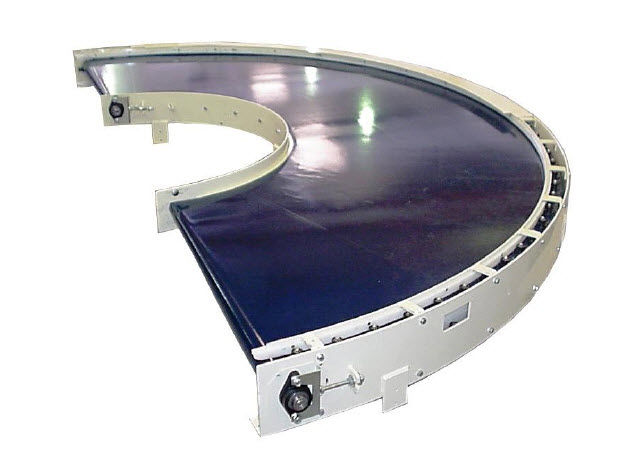

Curved belt conveyor
max. 100 m/min, 30° - 180° LM SPA

conical end rollers bends

Rubber belt curve conveyors with Conical End Rollers are used to convey medium/large products along curved paths, in dirty, industrial, harsh environments.
Typical application markets are packaging, logistics, ceramics, and cement production.
The main advantages of this technology are compact dimensions, high speed and heavy duty construction

Conical End Roller curves are normally used for:
- Plastic or wood cases, totes
- Shrink-packs
- Carton boxes
- Large bags with powder products
- Tile and bricks
- Wood panels

Typical features:
- Useful width from 300mm to 1700mm
- Inner radius from 300mm to 1100mm
- Angles from 30°to 180°
- 3 construction types: painted steel, stainless steel, abrasive environment
- Motor on the side of the conveyor

Options and special features:
- Motor under or over the conveyor
- Overhead susport brackets
- Larger diameter rollers for very heavy duty applications
- Special construction for high temperature products or environments
