Roller linear guide SG seriesaluminumhigh moving speeds
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Other characteristics
- aluminum, high moving speeds
- Rail length
Max.: 230 mm
(9.06 in)Min.: 60 mm
(2.36 in)- Rail width
Max.: 100 mm
(3.94 in)Min.: 28 mm
(1.1 in)
Description

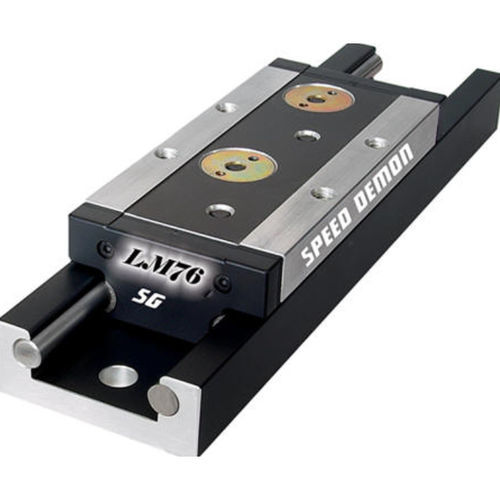

These systems employ round shafting, aluminum bodies and dual, angular contact - sealed for life - roller bearing wheels. Each has built-in preload adjustability. SPEED DEMONS are capable of speeds up to 10 meters per second. SPEED DEMONS are easy to install, lightweight and inexpensive.
