High-purity hydrogen generator
laboratorymembranecompact

high-purity hydrogen generator
high-purity hydrogen generator
high-purity hydrogen generator
high-purity hydrogen generator
Add to favorites
Compare this product


Characteristics

Gas characteristics
high-purity
Domain
laboratory
Technology
membrane
Configuration
compact
Other characteristics
automatic
Flow rate

Max.: 10 l/min
(2.642 us gal/min)

Min.: 3.3 l/min
(0.872 us gal/min)

Output pressure

16 bar
(232.06 psi)

Description

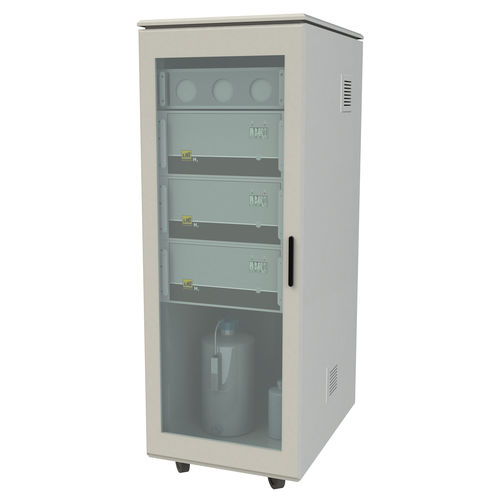

The HydroGen series H2 Power 10L is able to generate up to 10 L/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). H2 POWER 10L is a system able to provide up to 1Nm3/h of hydrogen. The hydrogen is produced from three Hydrogen Generators “6920.16.330” connected in parallel mode. 6920.16.330 uses an electrolytic cell with polymeric membrane (PEM) to produce pure hydrogen from distilled water. No acid or alkaline solutions are used. It is provided with an internal 1.1 litres tank with electronic level control and an automatic fill function “Autorefill” from an external source. Its innovative gas drying system is completely maintenance-free and allows continuous operation, 24 hours a day. The exclusive, electronically-controlled, gas/liquid separator automatic checks for internal leaks whenever starting the unit, and a constant control of operating parameters guarantees maximum safety. The touch-screen LCD interface provides a direct simple control and management of all functions on the unit. The RS232 and LAN ports allow a remote control of the system from anywhere in the world.
