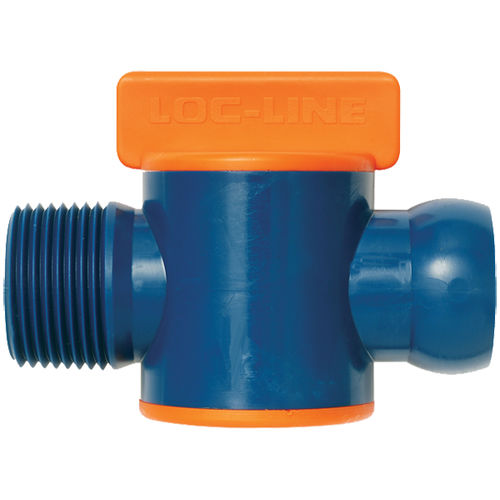

Manual valve 61516 for oilfor solventsfor gasoline
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Media
- for oil, for solvents, for gasoline
- Body
- threaded
- Applications
- for the food industry
- Other characteristics
- in-line, alcohol
- DN
0.75 in
- Pressure
20 psi, 40 psi
- Temperature
Min.: 0 °F
(-18 °C)Max.: 170 °F
(77 °C)- Flow rate
1,140 us gal/h, 2,280 us gal/h
(4,315.37 l/h, 8,630.74 l/h)
Description
Material: Acetal Copolymer
Colors: Blue, Orange, Black, White, Grey
Compatibility:
Yes: Acetone, Alcohol, Ethyl, Greases, Oils, Commercial Dish Detergents, Gasoline, Lacquer Solvents, Sodium Hydroxide
No: Chlorine, Acids, Ammonium Hydroxide, Bases Strong, Hypochlorite Ion Solutions, Sodium Hypochlorite
Melting Point: 329? F
Maximum Operating Temperature: 170? F (Repeated exposure to this temperature will cause fatigue)
Recommended Maximum Line Pressure & Flow Rates:
3/4? System 20 PSI 1,140 gal/hour
3/4? System With Element Clamps 40 PSI 2,280 gal/hour
Information regarding FDA (Federal Food and Drug Administration).
