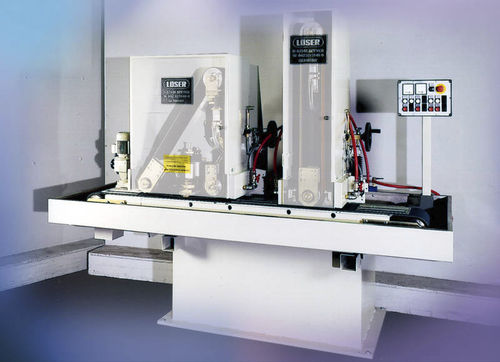

Surface grinding machine FS 384 Low Cost

PLC-controlledprecisionband

Open design version with stainless steel grinding head and stainless steel water pan. Workpiece dimension: width 150 mm x height 100 mm and any length Special versions for parts with hight 150 mm Special conveyors for parts which are not flat like door plates Belt grinding main drive 5,5 kW / 7,5 HP or 7,5 kW / 10 HP Pressure controlled grinding head for constant stock removal belt tension by adjustable pneumatic cylinder belt dimension 150 mm wide by 2500 mm length Workpiece transport by frequency driven belt conveyor Infeed and Outfeed by roller guide Optional handling system with return conveyor for automated operation Buffing stations with angle adjustment Buffing pressure controlled with wear compensation Wax system with solid or liquid compound feeder LOESER is a global technology leader with more than a thousand Flat Belt Grinding systems in operation worldwide. LOESER offers time proven solutions for low to high volume production on simple or complex belt grinding/polishing applications. Our modular design concept offers systems from high stock removal grinding to fine finishing depending on customers specific requirements.
