Flatness measuring machine GI20
controlhigh-precision

flatness measuring machine
flatness measuring machine
flatness measuring machine
Add to favorites
Compare this product


Characteristics

Measured physical value
flatness
Applications
control
Other characteristics
high-precision

Description

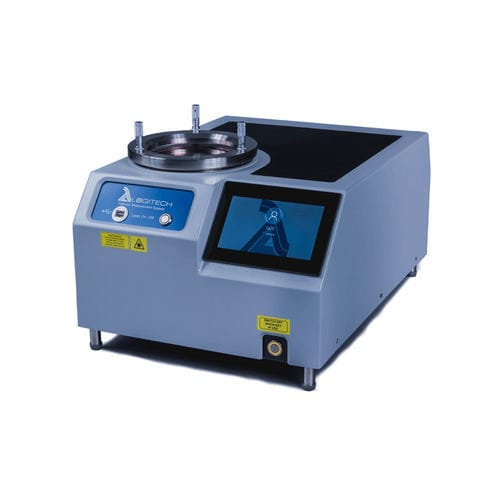

Logitech’s GI20 Flatness Measurement instrument provides high precision flatness measurement suitable for use with lapped and semi-polished surfaces up to 150mm (6″)Ø. Unlike conventional fizeau interferometers, the GI20 can be used for measuring non-reflective surfaces, making it ideal for carrying out checks on lapped and/or ground surfaces prior to final polishing. The interferogram is displayed on a screen at the front of the unit. A parallel display can be created via the HDMI port and images can also be exported through the USB port for external analysis. All features of the interferometer are controlled via the touch screen panel. Grazing Incidence Interferometry A standard fizeau interferometer will, depending on the wavelength used, normally operate with fringe spacing approximately 0.3µm. This often restricts flatness measurements to highly reflective materials which will provide sufficient contrast on the monitor. The resulting short distances between fringes often impedes the analysis of “busy” images. Logitech Grazing Incidence Interferometers overcome such problems by reflection of laser light at a grazing incidence angle off the sample surface. This angled beam of light ensures that the monitor shows fringes on both reflective and non-reflective sample surfaces. It also allows a large visible aperture of 127mm x 150mm (5″ x 6″), enabling samples of up to 150mm (6″)Ø to be accurately assessed. The 7″ screen allows rapid and accurate measurements to be made “in process” with fringe spacing displayed at a fixed 2µm interval, producing excellent contrast levels with surface finishes from polished samples up to 300nm Ra.
