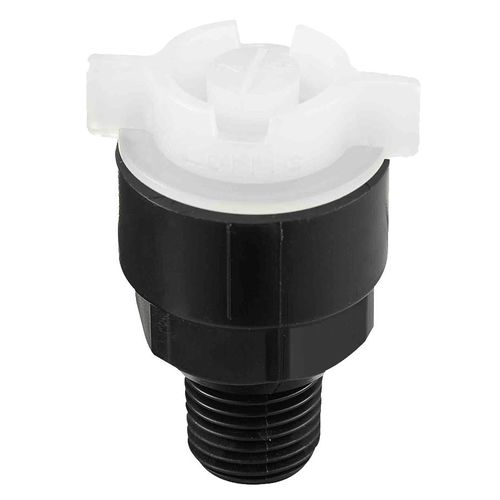

Spray nozzle QFH series
for cleaningcoolingwashing

spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray, for cleaning, cooling, washing
Fluid
for water
Stream
flat spray
Material
polypropylene, PVDF

Description

The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle. Products with special flow field distribution can be customized. Two-piece quick-release design is divided into two parts: the nozzle and the body. It can be installed and removed without any tools. It is convenient for on-site operation. With three positioning buckle points, the nozzle can be accurately screwed in and positioned to avoid loose nozzles and to ensure the quality of production. The internal gaskets have different options such as EPDM, Viton and Viton-F, which can be adapted to various chemical processes. With a special structural design, the nozzles and the base can be closely fitted to avoid water leakage. PVDF is resistant to temperature and corrosive chemical solutions. Recommended working pressure: 3.0 kgf/cm² Flowrate tolerance: ± 5% @ 3.0 ± 0.1 kgf/cm² Angle tolerance: ± 5° @ 3.0 ± 0.1 kgf/cm² Jet angle tolerance: 3°

Catalogs

No catalogs are available for this product.
