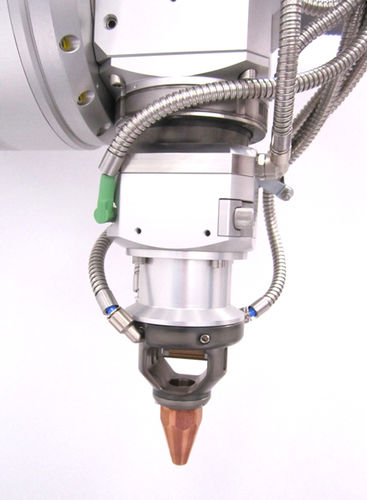

Continuous wave laser head RSH 3D-2

solid-stategasinfrared

RSD is our short name for a laser head consisting of a total of 2 motorized axes for use in large-format laser machines in gantry design for 3-dimensional laser cutting / laser welding of components. The horizontal main axis of the laser head permits endless movement, even during the rotary movement the axes below are permanently supplied with cooling water, process gases and all electrical signals. Suitable optics are used for the laser source used, either directly water-cooled metal mirrors with coatings of least absorption, or alternatively glass optics. The use of an adaptive optics optionally allows the freely programmable focus position for cutting and piercing. The exclusive use of torque motors reduces mechanically moving components and thus guarantees consistently high machining accuracy and best machining results over a long service life, against mechanical damage reliably protects our proven 3D collision protection. Our highly dynamic version (RSLH35) with significantly reduced masses has been available since 2017; alternatively, the laser rotary swivel head RSLH60 is still available for the use of larger apertures. When using a solid-state laser, optical components with 1.5 “and 2” are available and protective glass cassettes on both the collimator side and the pressure seal below the focusing lens protect the optics from contamination. There is also the option of replacing one of the standard optics with a special unit in order to realize the use of a camera.
