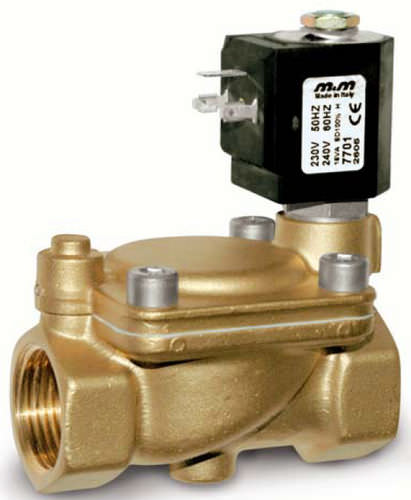

Pilot-operated solenoid valve D606, D622 series2-wayNCfor hot water
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for hot water
- Other characteristics
- membrane
- DN
Max.: 1 in
Min.: 0.75 in
- Temperature
Max.: 180 °C
(356 °F)Min.: -10 °C
(14 °F)- Pressure
10 bar
(145 psi)
Description
TECHNICAL SPECIFICATIONS
2 WAY NC PILOT OPERATED SOLENOID VALVE, 3/4 - 1
Media: hot water, steam
Media temperature: 140°F 1 ÷ 356°F
Ambient temperature: 14°F ÷ 158°F
Body material: brass (C37700)
Orifice material: stainless steel (AISI 303)
Operator material: stainless steel
Diaphragm material: PTFE
Coil power: ac 18VA (holding)
ac 36VA (inrush)
Protection class: NEMA 4 – IP 65 (with connector)
