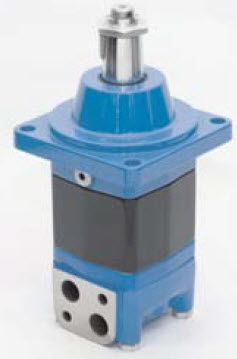

Orbital hydraulic motor MS, MLHS series
Add to favorites
Compare this product
Characteristics
- Technology
- orbital
- Pressure
Max.: 210 bar
(3,046 psi)Min.: 105 bar
(1,523 psi)- Rotational speed
Max.: 810 rpm
(5,089.38 rad.min-1)Min.: 130 rpm
(816.81 rad.min-1)- Torque
Max.: 865 Nm
(637.99 ft.lb)Min.: 240 Nm
(177.01 ft.lb)- Displacement
Max.: 557 cm³
(18.83 US fl oz)Min.: 66 cm³
(2.23 US fl oz)
Description
HYDRAULIC MOTORS TYPE - MS/MLHS, is a Orbiting roller set. MS have a disc valve which is a separate distribution valve driven by a short cardan shaft. The balance plate equalizes the hydraulic forces around the distribution valve. Model, flange and wheel mount, motor with drum brake, tacho connection, side and rear ports, speed sensor connection, shafts, metric and BSPP ports are options upon request.
