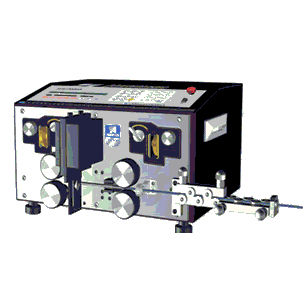

electrical cable cutting and stripping machine / blade
ZDBX-8 Madell Technology

{{requestButtons}}

Characteristics

  • Product to be stripped:

    for electrical cables

  • Technology:

    blade

Description

MOST APPROPRIATE FOR SPECIAL WIRES LIKE BATTERY CABLES, COAXIAL CABLES OR POWER CORDS.
THIS MACHINE INTEGRATES THREE PROCESSING STEPS IN ONE: LENGTH MEASUREMENT, CUTTING AND STRIPPING.

DESIGNED TO ALLOW EASY PARTS ASSEMBLY.PROGRAMMED WITH A VARIETY OF PROCESSING MODES, NO DAMAGES TO CABLE OUTER INSULATION, TWO LEVELS STRIPPING FOR MULTI CORE CABLES
Specification
MODEL: ZDBX-8
MEASUREMENT: W430xD340xH250 mm
WEIGHT: 35kg
POWER SUPPLY: AC 220V
POWER CONSUMPTION:260W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG # 16-30
BVVB£º 2X1.5MM
STRIPPING JACKET LENGTH£º70MM
INSULATION THICKNESS£º0.7MM
JACKET THICKNESS: 0.9MM
