preheating oven / automatic
SMD-2007 Madell Technology

Add to MyDirectIndustry favorites

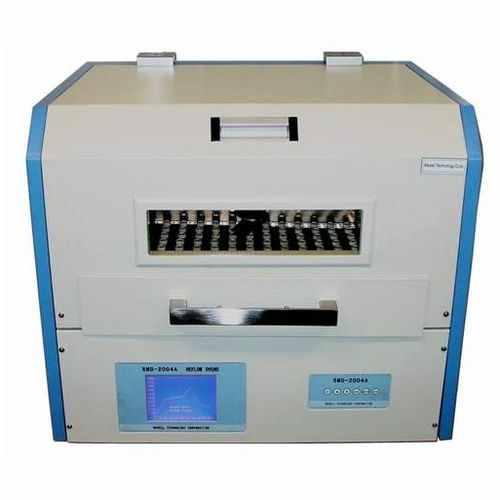

preheating oven / automatic preheating oven / automatic - SMD-2007
{{requestButtons}}

Characteristics

  • Function:

    preheating

  • Other characteristics:

    automatic

  • Maximum temperature:

    300 °C (572 °F)

Description

Full automatic fuzzy logic temperature control.
l Back light LCD display.
l Can be used for any surface mount components.
l Can also be used for two sides PCB boards.
l IR+hot air.
l RS232 computer interface and software.
l Lead-free reflow capable.
l The new model has front view window, the top can be opened for easy heater replacement.
l Great for repair preheating.
l Meets IPC standard.
l Temperature to 300°C.
l Working area: 400mmx350mmX30mm(14"x16"x1").
l External measurement: 600mm(w) x465mm (d) x500mm (h).
l Working cycle 5 minutes per board. Beeps when the board is done.
l Manual draw.
l Built in automatic air cool.
l One profile stored in EPROM, can be modified with keypads.
l No programming necessary, no computer interface.
l No datalog.
l 3.5KW power, 220V. We have transformers for 110V power supply. It works with 208V supply, but not with 240V or higher.
l Weight: 32Kg without the packing material.
