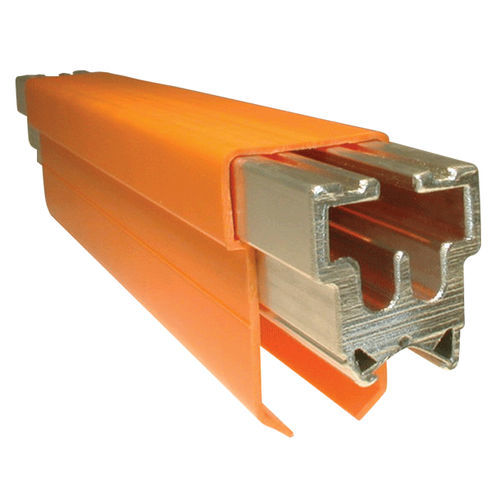

Stainless steel conductor rail ELECTROBAR® HX-Bar
aluminum alloyinsulatedenclosed

stainless steel conductor rail
stainless steel conductor rail
Add to favorites
Compare this product


Characteristics

Material
stainless steel, aluminum alloy
Electrical characteristics
insulated
Structure
enclosed
Protection level
insulated

Description

When you need high amperage power delivery for a heavy duty application, Magnetek's Electrobar HX-Series Enclosed Conductor Bar System is the solution. Features: Electrobar HX Systems can accommodate 600 Volt AC and 250 Volt DC applications Line elements are available to deliver 400, 700, and 1000 amps continuous current Rated for use in environments up to 160° F ambient temperature Aluminum alloy extruded line elements with stainless-steel lined contact surface provide better performance and increase durability Inverted V contact surface for positive tracking of collector shoes
