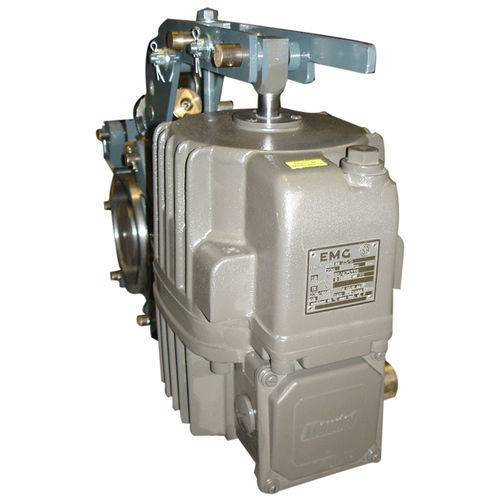

Linear actuator Hy-Thrust
electrichydraulicelectro-hydraulic

linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
electric, hydraulic, electro-hydraulic
Technology
piston, cylinder
Material
aluminum, cast iron
Motor
DC, AC
Protection class
explosion-proof
Other characteristics
compact, mechanical, vacuum, explosion-proof, adjustable-stroke, anti-corrosion
Stroke

Min.: 2 in

Max.: 7.8 in

Torque

Min.: 50 ft.lb

Max.: 900 ft.lb

Ambient temperature

Min.: -13 °C
(9 °F)

Max.: 122 °C
(252 °F)

Description

Magnetek actuators are electro-hydraulic devices which combine all the basic elements of a hydraulic system into one integral unit, consisting of an electric motor driving a hydraulic pump, piping, working cylinder and piston. The function of the actuator is to convert electrical energy into a mechanical force hydraulically, producing a smooth straight line thrust, throughout the piston stroke. They are mainly used to release spring-set brakes like the MBT, MST and SDT. Three types of actuators are available: AC three phase (Ed type) AC three phase explosion-proof (EdF type) DC (Eg type) Magnetek offers the Ed type of 60 Hz actuator in 208VAC, 230/460VAC and 575VAC three phase versions. Other voltages from 110VAC to 690VAC, 50 Hz versions, explosion proof and DC (220VDC) actuators are available with longer lead times. Standard Features: Fast response - 2000 cycles per hour Long service life with minimum maintenance Extending forces from 50 lbs. to 900 lbs. Strokes from 2 to 7.8 inches Can be stalled at any stroke position without damage. Operating ambient temperature -25°C to +50°C with standard fluid (other ranges available on request) Class F insulation Aluminum housings Options: Internal compression spring Externally adjustable, stepless time delays - both directions (S) (H) Vacuum poured stator windings Special paint for corrosion protection or easier decontamination Internal heaters for below -30 Deg. C ambient (110V or 220V) Explosion proof models available in VDE EEx d II and EEx d I Cast iron housings for nuclear applications
