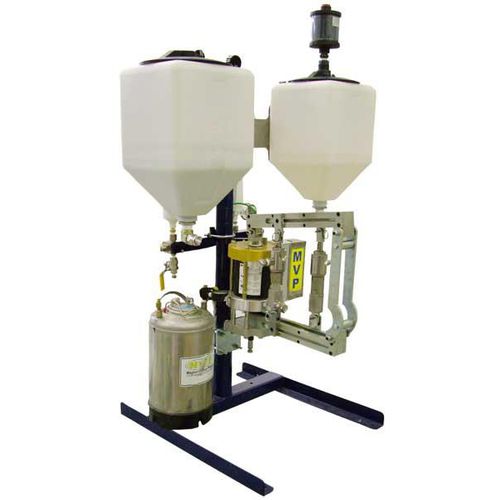

Silicone dosing unit MicroPro

epoxy resinurethanelow-flow

Ideal for low flow rate metering of many epoxy, urethane and silicone materials The MicroPro Proportioner System is ideal for low flow rate metering of many epoxy, urethane and silicone materials. It works with many application methods including spray, splatter, pour, RTM, and as a table-top proportioner, and is ideal for low or high pressure applications with material viscosity from 20cps to 40,000 cps. MICROPRO PROPORTIONER SYSTEM • Specifications: • 5” Air Motor with Two VHPC-2200 • Power Ratio: 24:1 • Air Requirements: 60 psi at 40 cycles/min. 17 SCFM • 3.25” Air Motor • Power Ratio: 10:1 • Air Requirements: 60 psi at 40 cycles/min. 7.5 SCFM Ratio: • Two HVPC-2200: 1:1 to 3.7:1 • VHPC-2200 & VHPC-3200-ADH: 1.84:1 to 5.85:1 • VHPC-2200 & VHPC-4200: 4.15:1 to 13:1 Options: • Shot size controls • Auto Level control & alarm • In-line resin heaters & heated hoses • Recirculation • Innovator Control Box Applications: • Urethane: Gelcoat – Spray, Adhesive – Pour • Urethane and Epoxy: RTM and LRTM • Silicone Bags, Splatter Nozzle • Quick Shot, Epoxy, and Urethane Table-Top Proportioner (pour with mixer or two-stream)
