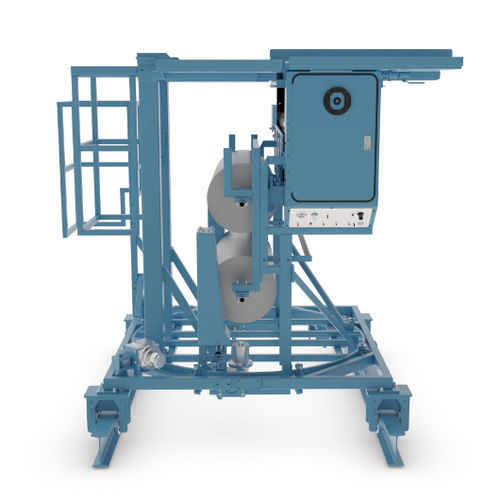

Fabric impregnation machine

fabric impregnation machine
fabric impregnation machine
fabric impregnation machine
fabric impregnation machine
fabric impregnation machine
Add to favorites
Compare this product


Characteristics

Options
fabric

Description

Controlled wet out impregnation of fabric sheet or roll good materials The Bridgecrane Impregnator is designed to process woven roving, stitch mat and/or fiberglass cloth with catalyzed polyester resin, metering the resin-to-glass ratio and depositing this material on a flat or hull surface (either male or female mold style). This style Impregnator is used to make up bulkheads, decking and other flat sheets used to build a composite ship as well as the hull itself. The impregnator can handle glass roll goods up to 60 inch wide. A pair of nip rollers with an adjustable gap controls resin content. The impregnator is capable of producing laminates with glass content up to 55 percent by weight (depending on materials). Use of the Impregnator reduces the amount of resin and fiberglass used. In addition, styrene fuming is far less when using the Impregnator, as the resin is simply poured into the machine from the mix head. BRIDGECRANE IMPREGNATOR Specifications: • Equipment Configuration: Stationary or portable • Mix & Dispense Equipment: Epoxy, Polyester, Vinylester, etc • Controls: Pneumatic controlled & adjusted • Auto Level Controls: Controls resin dispensed level in Nip Rolls • Instrumental Dials: Adjustment for fabric changes & variable wet-out • Glass to Resin Ratio: Content up to 55% • Standard Widths: Available 18in (457mm) to 100in (254M) • Output Capacities: 1,000 lbs (454 kg) per hour • Processing Speeds: 20 ft (61 M) per minute • Cleaning: Solvent flush spray system

Catalogs

No catalogs are available for this product.

See all of Magnum Venus Products‘s catalogs
