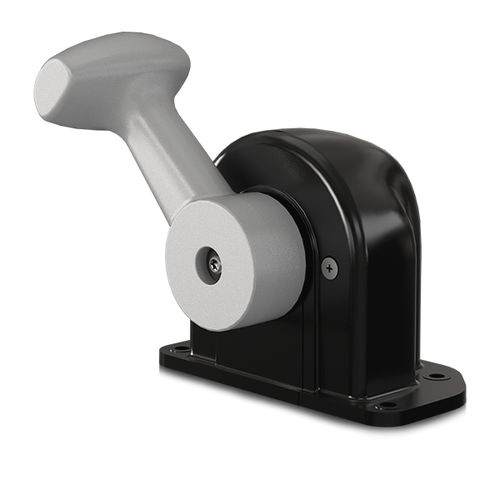

electronic control lever / industrial / fully redundant / Hall effect
MO 376-A-B Makersan

Characteristics

  • Type:

    electronic

  • Applications:

    industrial

  • Other characteristics:

    fully redundant, Hall effect

Description

MO 376-A-B Control Lever

MECHANICAL
Technology: Contactless Hall Measuring Principle
Protection: IP6K9K (Sensor)
Safety: Full Redundant Sensor
Operating Temperature: -40°C ... +85°C
Options: Customized wire harness / Connector kit

ELECTRICAL
Supply Voltage: 5 VDC or 10(12)~30 VDC
Connector: 6 Way Delphi Packard Metric Pack 150
Output Options (Programmable):
- Analog Type (Single/Dual): 0-5 V (max. 1 mA) / 0-10 V (max. 1 mA) / 4-20 mA Current / 0.1-1 kHz PWM
- Analog+IVS Type: Analog + High-Side or Low-Side Switch
- CAN Type: SAE J1939 / CANopen

OTHER SPECIFICATIONS
Specification: Embedded type with button
Operating Angle: 90° or 180°
Suitable for different engine interfaces
Shock and vibration robust
