rotary position sensor / contactless / Hall effect / analog
MO 450-A Makersan

{{requestButtons}}

Characteristics

  • Type:

    rotary

  • Contact / non-contact:

    contactless

  • Technology:

    Hall effect

  • Output signal:

    analog, CANopen, CAN bus

  • Other characteristics:

    compact, rugged, high-precision, redundant, waterproof, dual-output, IP69K

  • Applications:

    industrial, for hydraulic applications, for automotive applications, for mobile hydraulics, for robotics, for actuators, OEM applications, for machine tools, for the food industry, for accelerator pedals

Description

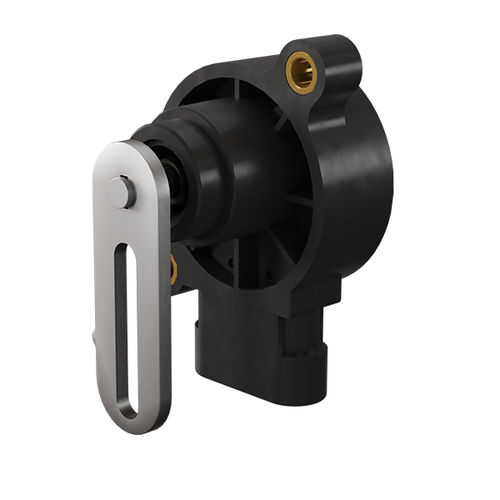

MO 450-A Rotary Position Sensor

Technology: Contactless Hall Measuring Principle
Angle Range: 0 - 360° Programmable (0.1° resolution)
Connector: 6 Way Delphi Packard Metri Pack 150
Protection: IP6K9K
Safety: Full Redundant (Double Die)
Operating Temperature: -40°C ... +85°C
Lifetime: 10 Million Cycles
Supply Voltage: 5 VDC or 10(12)~30 VDC
Output Options (Programmable):
Analog Type (Single/Dual):
● 0-5 V (max. 1 mA)
● 0-10 V (max. 1 mA)
● 4-20 mA Current Output
● 0.1-1 kHz PWM Output
Analog+IVS Type:Analog + High-Side or Low-Side Switch
Power Type:Proportinal (PWM 1kHZ) HS output (2.2A/ch)
CAN Type:SAE J1939 / CANopen
*Options: Customized start angle / Rotation direction / Output type for different engine interfaces
