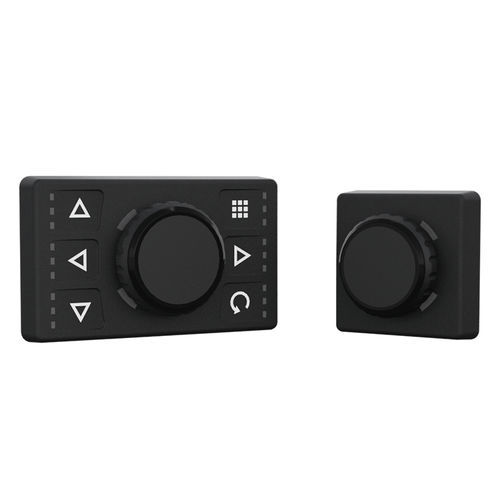

CAN Joystick Keypad
Rotary push/pull button knob with 6 quick-pick keys
Up to 1 million cycles per key
-40C° … +85C° Operating Temperature
Sealed to IP 65
8-32V Supply Voltage
80 mA at 24V (typical)
Up to 36V Overvoltage Protection
SAE J1939, CANopen and Modbus versions
Vibration and impact resistant
Dimmable LED indicators and legends
Up to 3 LED indicators per key (MO 406)
Dimmable multicolor ring and backlight LED
Programmable parameters and LED color
Custom legends and configurations available (MO 406)
Custom keytop legends (MO 406)
Indicators colors : Red (default)
