accelerator pedal / electronic / single pedal / IP67
MO 129LW Makersan

{{requestButtons}}

Characteristics

  • Function:

    accelerator

  • Technology:

    electronic

  • Type:

    single pedal

  • Other characteristics:

    IP67, IP69

Description

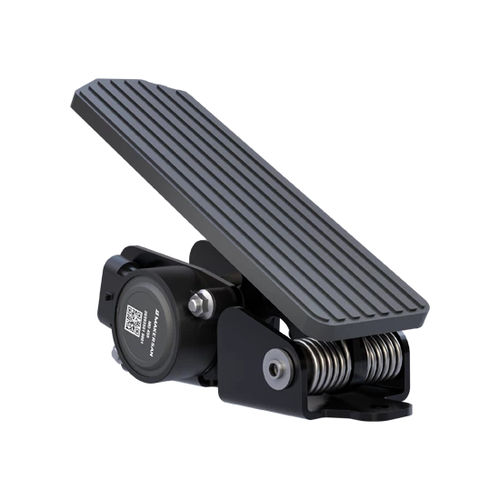

MO 129LW ACCELERATOR PEDAL

MECHANICAL
Technology: Contactless Hall Measuring Principle
Protection: IP6K9K (Sensor)
Safety: Two Independent Springs / Full Redundant Sensor
Operating Temperature: -40°C ... +85°C
Operating Angle: 19° (± 1°)
Options: Customized wire harness / Connector kit

ELECTRICAL
Supply Voltage: 5 VDC or 10(12)~30 VDC
Connector: 6 Way Delphi Packard Metric Pack 150
Output Options (Programmable):
- Analog Type (Single/Dual): 0-5 V (max. 1 mA) / 0-10 V (max. 1 mA) / 4-20 mA Current / 0.1-1 kHz PWM
- Analog+IVS Type: Analog + High-Side or Low-Side Switch
- CAN Type: SAE J1939 / CANopen

OTHER SPECIFICATIONS
Heavy duty metal case pedal
Suitable for commercial and offroad vehicle applications
Rubber treadle cover
Initial angle 30°, 35°, 40° and 45° option
Kickdown virtual effect option
Suitable for different engine interfaces
