hydraulic tipping station / bin / fixed
VD130 MANERGO

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Applications:

    bin

  • Other characteristics:

    fixed

Description

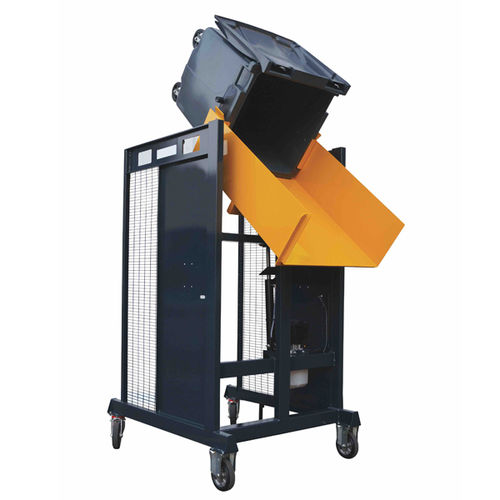

The site VD130 specific trash bouncer allows you to empty your garbage cans 400 litres of waste in large volume dumpsters.

For bins 400 litres
Rotation Angle 130 °
Maximum load of 200KG
200 mm diameter rubber wheels (two swivel and two fixed) with brakes
Spill chute integrated into the receptacle allowing the waste to be properly channeled during the spill
Indoor or outdoor use
Screened side guards with a height of 2300 mm
Finish paint chassis ral 7016 and tilting part yellow RAL 1028
Protective devices: emergency stop, actuated valve in foot of cylinder, control requiring use of both hands
Ascent time 19 seconds and descent 15 seconds (18 bins per hour)
French design and manufacturing
