truck-mounted crane / boom / rough terrain

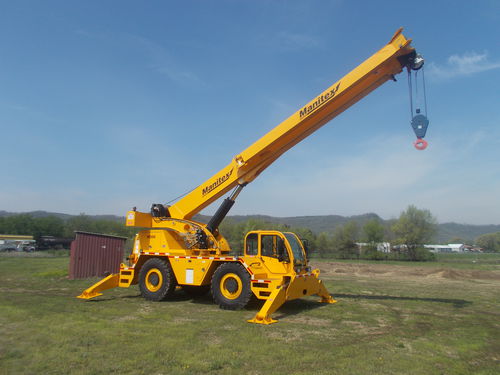

M300 Manitex



  • Configuration:


  • Structure:


  • Operating environment:

    rough terrain

  • Lift capacity:

    30 t (33 us ton)

  • Working height:

    91'07" (27.92 m)


The M300 Rough Terrain Crane's features are designed to make pick-and-carry jobs safer and more efficient.

The low-profile, high-capacity unit offers:
- 3-section, 77 ft. synchronized boom
- Optional 4-section boom for shorter overall length
- Self-lubricating boom slider pads
- Two-speed planetary grooved drum hoist - with negative draft flange
- Auxiliary hoist option
- Continuous 360-degree rotation hoist drum rotation indicator
- High visibility cab with multi position seat, in dash display, main wiper and upper wiper
- Electronic joystick controls
- Optional rated capacity indicator with digital display, CANbus system interface and overload shutdown
- Radio anti two block system
- Rugged, weatherproof automotive-style electrical system
- Design meets ANSI B30.5 recommendations
- Heavy-duty steel fenders integrated with the fuel and hydraulic tanks
- Electronically controlled powershift – six (6) forward speeds and six (6) reverse speeds
- Four steering modes with auto alignment
- Auto-centering axels – rear have oscillation
- Hydraulic disc brakes (4)
- Planetary swing drive
- Swing brake
- 24-volt system
- Cantilever-style outriggers
- Operators manual and parts manual
