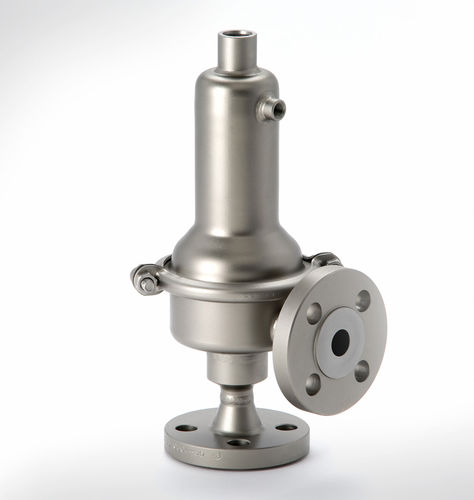

Membrane back-pressure regulator DN 15 - 50, PN 10 - 16, 180 °C | UV 3.8Mfor hygienic applications
Add to favorites
Compare this product
Characteristics
- Technology
- membrane
- Applications
- for hygienic applications
- Flow
Max.: 9 m³/h
(317.83 ft³/h)Min.: 3.5 m³/h
(123.6 ft³/h)
Description
single-seat, angled design, straight-way valve for medium flow rates | usable for liquids and gases | completely made of deep-drawn CrNiMo-steel (316L) surface finish possible up to Ra ≤ 0.25 μm | virtually pocket-free, corrosion-resistant, lightweight and compact | adjusting screw as a function of display, easy-to-maintain owing to the clamp system | elastomers as per FDA and USP Class VI, hygienic class HE5 | reduced preheating time for CIP/SIP procedures, less energy needed | can be actuated pneumatically, spring cap available with leakage line connection and adjusting screw seal
