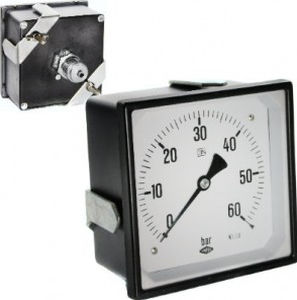

Pressure gauge with square case RQ144-3analogstainless steelBourdon tube
Add to favorites
Compare this product
Characteristics
- Display
- analog
- Material
- stainless steel
- Technology
- Bourdon tube
- Protection level
- chemical-resistant
- Applications
- process, for gas, for liquids
- Other characteristics
- with square case
- Pressure
Min.: -1 bar
(-14.5 psi)Max.: 1,000 bar
(14,503.77 psi)
Description
Bourdon tube pressure gauge acc. to EN 837-1
♦ Accomplishment: square case
♦ Nominal size: 114x114mm
♦ Acc. of max. scale value: 1,0%
♦ Measuring system: Stainless steel 1.4571
♦ Case: Square case, steel enamelled black
♦ U-clamp for panel mounting, narrow front frame
♦ Window: glass
♦ Connection: G1/2" lower back
Application area:
♦ For fluid and gaseous media (compatible with wetted materials), which are not highly viscous and di not tend to polymerize, espacially where chemical resistance and high safety standards for the observer are required.
♦ preferential for fitting in concole panels and desks of the size of 114x114mm.
