wall-mounted terminal box / explosion-proof / waterproof / glass fiber-reinforced polyester
B2X series MARECHAL ELECTRIC

{{requestButtons}}

Characteristics

  • Mounting:

    wall-mounted

  • Protection level:

    explosion-proof, waterproof

  • Material:

    glass fiber-reinforced polyester

  • Other characteristics:

    with cable gland

Description

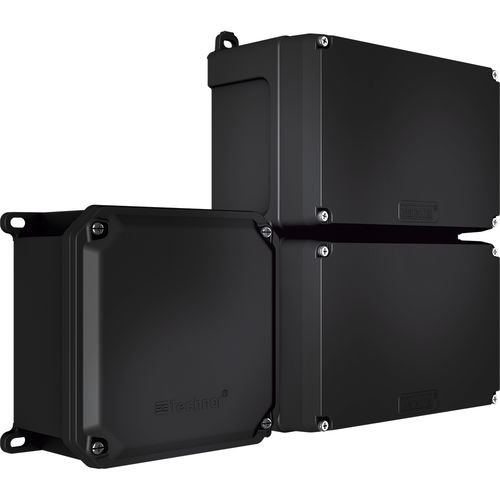

These GRP enclosures B2X are designed to facilitate the electrical connection in potentially explosive atmosphere. These enclosures are also intended to be used in zone 1 & 2 (gas), 21 & 22 (dusts), with increased safety or intrinsically safe type of protection. This range is also ideal for harsh environment (corrosion, pollution). Equipped with Ex e certified terminal blocks for connection of flexible or stranded conductors with 0,22mm² to 16 mm² section.

Ex II 2 G D Ex e ia ou ib IIC, Ex tb IIIC
IP66/IP67
From -50°C to +60°C
2 Sizes: 120x120x90 and 160x160x90 mm
