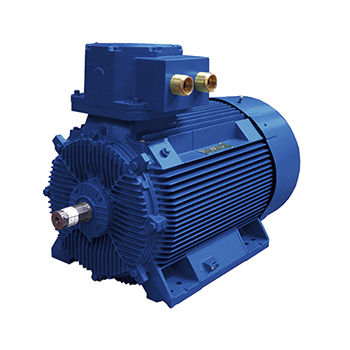

AC motor B5N seriesasynchronous100 VATEX
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- asynchronous
- Voltage
- 100 V
- Protection class
- ATEX, for hazardous areas, IP55, IP56, IP65
- Configuration
- cast iron
- Number of poles
- 4-pole, 8-pole, 6-pole, 2-pole
- Cooling mechanism
- air-cooled
- Applications
- for the oil and gas industry, for pumps, blower, mill duty, for heat exchangers, for air compressors, for crane, for conveyors
- Other characteristics
- low-voltage
- Power
900 kW, 1,300 kW, 1,600 kW
(1,223.659 hp, 1,767.508 hp, 2,175.394 hp)
Description
Certificate
Motors from 160 to 315 frame size are certified by TÜV NORD.
Ex nA according to IEC/EN 60079-15 and ATEX directive 94/9/EC.
Housing
Frame is made in cast iron.
(EN 1561-GJL-200)
Shield
Made in cast-iron (EN 1561 – GJL 200)
Shaft
General data
Made in carbon steel (EN 10083 – 2 C45) Shaft design
Cylindrical shaft with key.
Main terminal box
Mounted on top.
Made in cast iron. (EN 1561 – GJL 200)
Fan
Frame 71 ± 280 315 355 ± 450
Pole 2 ± 8 2 ± 6 8 2 4 ± 6
Material Thermoplastic reinforced with glass fibres Metallic Polyamide Alluminum alloy
