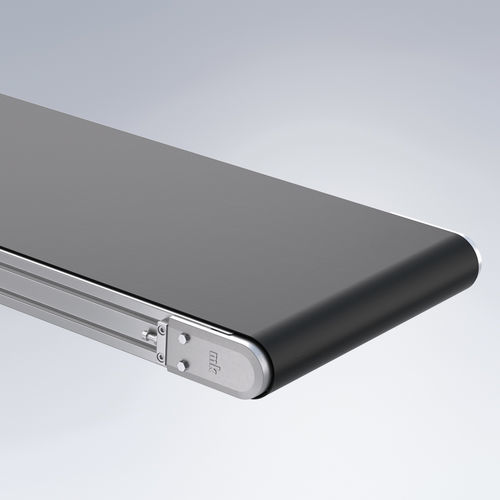

belt conveyor / horizontal / flexible belt
GUF-P 2041 Maschinenbau Kitz GmbH

{{requestButtons}}

Characteristics

  • Technology:

    belt

  • Other characteristics:

    horizontal, flexible belt

  • Maximum load:

    150 kg (330.693 lb)

  • Speed:

    60,000 mm/min (39.37 in/s)

Description

The GUF-P 2041 conveyor system enables belt loads to 150 kg. The profile cross section of the belt body of 50 x 80 mm and the drive roller diameter 85 mm guarantee a construction that can withstand high loads. The large selection of belt types, also in conjunction with cleats and sidewalls, enables versatile system implementation. The conveyor system is optionally available with a compact drum motor and knife edge.

Dimensions - Technical Data
Standard conveyor widths B: 200 to 1200 mm (in 100 mm increments)
Conveyor length: Custom from 500-10000 mm
Load capacity max.: 150 kg
Drive & speed: to v = 60 m/min
Drive versions: AA, AC, AF, AS, BC, CA
Tails: 01, 02, 13, 19 with roller diameter 22, 85
