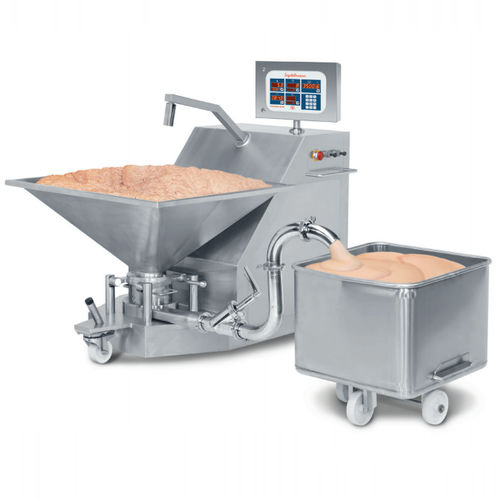

Seydelmann Konti-Kutter work with a unique hole and cutting plate system and are the ideal machines for the production of fine emulsions and finest cooked sausage types.
Applications
Especially suitable for the final emulsification of pre-reduced material. In addition to fine sausage types like Lyoner or Wieners, the machine produces products with coarse filling, like Jagdwurst and Bierwurst or purely coarse grain sausages like Bauernbratwurst or liver sausage of highest quality. The baby food, cheese, and pet food industries are further fields of applications of the Kon-ti-Kutters.
facts
Hopper capacity: 18S liter / 550 liter
Weight at 185 liter
hopper capacity: 1200 kg/ 2645.50 lbs
Weight at 550 liter
hopper capacity: 1250 kg/ 2755.73 lbs
Power of motor: 90 kW /120.70 HP
Hole plate diameter: 140 mm / 5.51 in
Throughput capacity: 2- 9 t/h
System
The premixed product is sucked through a specifically developed system of vertically arranged hole- and cutting plates. Therefore the chopping process takes place on several cutting levels. At minimal distance from one another yet without any actual contact, the plates do not rub against each other. Thus, contamination of the material through metal particles is avoided completely and the lifetime of the cutting set is considerably extended. The cutting process leads to only small temperature increases. The higher frequency of cuts per time unit allows a higher protein extraction producing a finer and more homogeneous emulsion.
