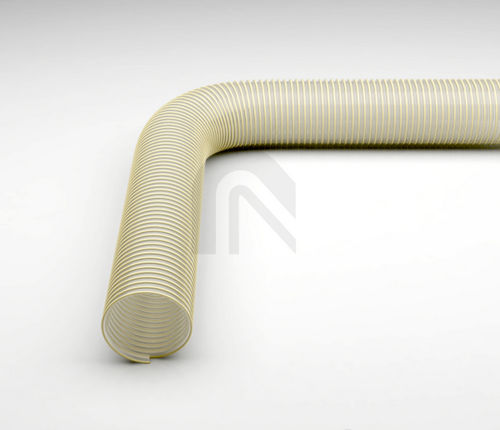

Transport hose Master-PUR HX S
for bulk materialspolyesterpolyurethane

transport hose
transport hose
transport hose
Add to favorites
Compare this product


Characteristics

Use
for bulk materials
Material
polyester, polyurethane
Applications
suction, transport, construction, chemistry, conveying, for food industry applications, for pharmaceutical applications, for the plastics industry, for the steel industry
Norms
DIN
Other characteristics
abrasion-resistant, flexible, chemical-resistant, smooth, UV-resistant, with smooth inner surface, anti-static, microbe-resistant, transparent, ATEX, vacuum, halogen-free, gas-tight, extruded, for cement
Inner diameter

Min.: 51 mm
(2.008 in)

Max.: 152 mm
(5.984 in)

Outer diameter

Min.: 64 mm
(2.52 in)

Max.: 165 mm
(6.496 in)

Pressure

Min.: 2.25 bar
(32.633 psi)

Max.: 4.85 bar
(70.343 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Delivered length

5 m, 10 m, 15 m, 20 m
(16'04" , 32'09" , 49'02" , 65'07" )

Description

PU Suction hose & Transport Hose, highly abrasion resistant and vacuum proof, very smooth inner lining, antistatic, microbe-resistant Construction / Material Type of construction - Profile extruded hose with metal spiral Spiral Design - made of steel wire Execution of the wall - made of specified material, Addition of a non-migrating permanent antistatic agent, Wall thickness between the spirals approx. 3.5 mm Material of the wall - Polyether Polyurethane Specifications of the wall - Surface resistance RO < 109 Ohm, measured according to DIN EN ISO 8031, Material is more abrasion resistant than comparable polyether polyurethane according to DIN ISO 4649 Properties Specifications of the product - according to TRGS 727 and ATEX 2014/34 EU Chemical Properties - microbe-resistant, halogen-free, good resistance to chemicals, good UV resistance, good resistance to oil, good resistance to petrol, good ozone resistance, plasticiser-free Physical Properties - permanently antistatic Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and peak pressure resistance, particularly smooth on the inside
