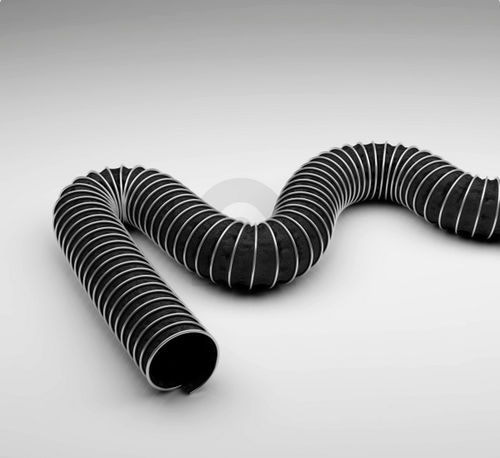

Air hose Master-Clip SPARK XLfabricair conditioningfor suction units
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- fabric
- Applications
- for fume extraction, for automotive applications, air conditioning, for suction units, for ventilation, for welding, for the steel industry, for the textile industry
- Other characteristics
- flexible, abrasion-resistant, lightweight, microbe-resistant, hydrolysis-resistant, flameproof, for abrasive products, small bend radius, spiral wire
- Inner diameter
Max.: 900 mm
(35.433 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 0.9 bar
(13.053 psi)Min.: 0.016 bar
(0.232 psi)- Temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)- Delivered length
3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )
Description
Material
clip profile spiral: hot-dip galvanised steel band
wall: special-coated textile high-temperature fabric
Applications
for greater safety requirements
Grinding dust extraction with high degree of flying sparks
Welding fume extraction with greater degree of flying sparks
Suction of hot and abrasive sanding dust
Properties
primarily resistant to increased risk of flying sparks
outer chafing protection spiral
good mechanical resistance
high tension-proof connection of wall-lining and spiral via special clamp mechanism
extremely compressable to approx. 1:6
smallest bending radii
