gas hose / transport / conveying / handling
Master-PUR Performance Masterflex SE

{{requestButtons}}

Characteristics

  • Use:

    for gas

  • Applications:

    transport, conveying, handling

  • Material:

    polyester, polyurethane

  • Other characteristics:

    abrasion-resistant, oil-resistant, chemical-resistant, UV-resistant, with smooth inner surface, microbe-resistant, anti-static, halogen-free, small bend radius, spiral wire

  • Inner diameter:

    Min.: 38 mm

    Max.: 152 mm

  • Outer diameter:

    Min.: 50 mm

    Max.: 169 mm

  • Pressure:

    Min.: 1.5 bar (21.756 psi)

    Max.: 4.35 bar (63.091 psi)

  • Temperature:

    Min.: -40 °C (-40 °F)

    Max.: 90 °C (194 °F)

Description

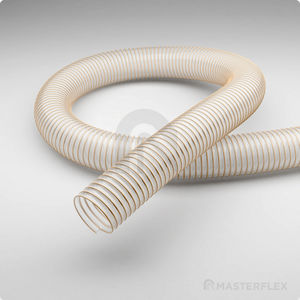

Masterflex's Master-PUR L Trivolution contains a spiral which is made up of a spring steel wire. Its wall is made up of 100% pure polyurethane as it has an inner lining which is composed of an application-optimised polyurethane 60° Shore A. The temperature range of the product is -40°C to +90°C and it can be applied to any applications where easy-to-clean surfaces are needed.

It is also recommended for suction and transport hose for extremely abrasive solid, liquid and gaseous media and it is suitable for the applications including a conveyor and loading plants. The hose can resist microbe, chemical, abrasion, pressure, vacuum, UV and ozone.
