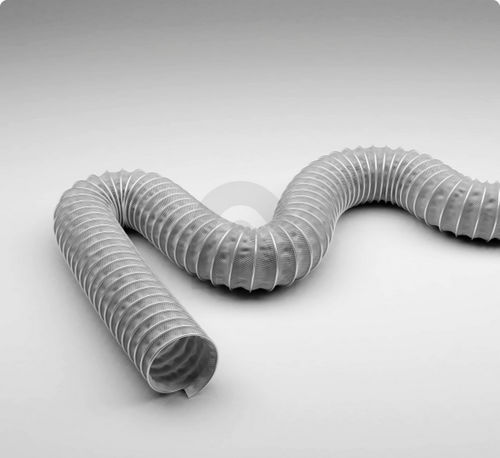

Hot air hose Master-Clip HT 400
fabrichigh-temperaturelow-pressure

hot air hose
hot air hose
hot air hose
Add to favorites
Compare this product


Characteristics

Use
for hot air
Material
fabric
Applications
for fume extraction, high-temperature, low-pressure, medium-temperature
Other characteristics
lightweight, heat/cold-resistant, vacuum, reinforced, small bend radius, spiral wire
Inner diameter

Min.: 38 mm
(1.496 in)

Max.: 900 mm
(35.433 in)

Pressure

Min.: 0.01 bar
(0.145 psi)

Max.: 0.4 bar
(5.802 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 400 °C
(752 °F)

Delivered length

3 m, 6 m, 10 m
(9'10" , 19'08" , 32'09" )

Description

Medium and high temperature hose for temperatures up to +400°C Type of construction - Spiral hose with clamping profile Design of the helix - metal band, formed as a clamping profile Material of the helix - Steel strip, hot-dip galvanised Design of the external spiral - designed as an additional protective profile Execution of the wall - coated, Coating with heat stabilisers Material of the wall - High temperature fabric, reinforced by interwoven VA wire Properties Chemical Properties - silicone-free Mechanical Properties - compressible approx. 1:6 Pressure Resistance - moderately pressure resistant Colour - silver grey Other - increased vacuum resistance due to woven-in reinforcing components short-term maximum temperature - peaks to +400° C exhaust gas temperature (peaks to +450° C), for proper use exhaust gas funnels are required and a sufficient supply of fresh air (approx. 50% related to the maximum specified temperature) Delivery Information Delivery, type of production - Order-related production Application Areas Areas of application - Industry, Ventilation & air-conditioning, Food & Pharma, Metal & Toolmaking Customizing Options optional item modification (on request) - other lengths, other nominal widths, other colours, other spiral distance, with stainless steel spiral
