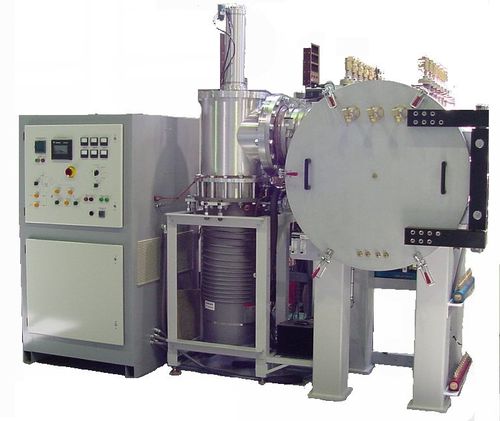

Chamber furnace F-20
vacuuminert gasgraphite

chamber furnace
chamber furnace
chamber furnace
chamber furnace
Add to favorites
Compare this product


Characteristics

Configuration
chamber
Atmosphere
vacuum, inert gas
Other characteristics
graphite
Maximum temperature

1,650 °C, 1,700 °C, 2,100 °C, 2,200 °C, 2,500 °C
(3,002 °F, 3,092 °F, 3,812 °F, 3,992 °F, 4,532 °F)

Description

F-20 Front Loading Furnace Similar in design and with identical temperature specifications as our F-14 model, Model F-20 has a hot zone that measures 20”W x 20”H x 40”D (508 mm W x 508 mm H x 1016 mm D). This model features a front and rear access cover to easily perform maintenance. This furnace has a load capacity of 800 lbs (364 kg) and has numerous chamber ports for installation of options and accessories. Heating elements are metallic mesh panel heaters, rod heaters or graphite panel heaters.See Model F-26 for additional specifications. Specifications: Hot zone size: 20”W x 20”H x 40”D (508 mm W x 08 mm H x 1016 mm D). Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten/Tantalum, 2200°C max. Tantalum, 2100°C max. Graphite, 2500°C max. +/- 10°C temperature gradient across zone Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options.
