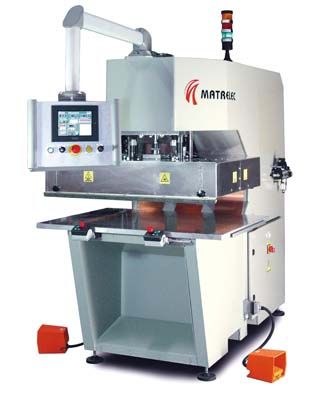

Pneumatic press C63P series, C83PS
high-frequency weldingfor plastics

pneumatic press
pneumatic press
pneumatic press
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Function
high-frequency welding
Applications
for plastics

Description

These high frequency welding presses are perfectly adapted to welding PVC, PU and EVA sheet or film, PVC coated materials, polyurethane, PETG and any material with dielectric loss properties at 27.12 MHz. 1 – C-CLAMP PRESS •Rigid tack welded chassis, with RAL 7032 textured paint. •Pneumatic press capacity: 1000 kg max •Lower marble dimensions: 800 x 1000 mm •Upper marble, dimensions 350 x 500 mm to 650 x 1000 mm, with adjustable alignment and lateral brackets for tool support •Temperature controlled upper marble through thermostat and electrical resistors •Shielded upper marble to avoid possible interferences through radiations •HF + CE casing or power shut off controlled by scanners on 3 sides of the press •Electrical junction cabinet with control panel on a jib crane fixed at the top of the press (optional touch screen available) •2-Hand control system
