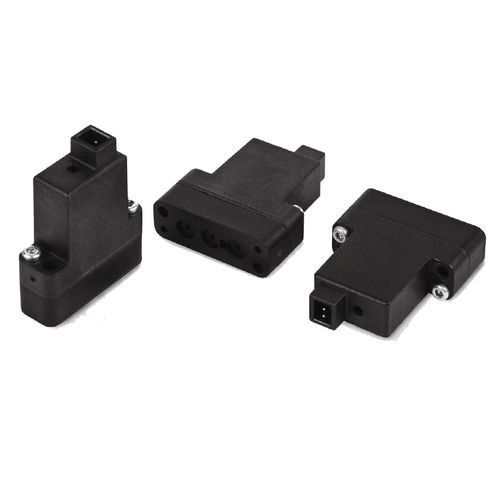

Miniature solenoid valve 320 seriesdirect-operated2-way3-way
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way, 3-way
- Function
- NC, NO
- Medium
- air
- Body
- miniature
- Voltage
24 V
- Temperature
Max.: 50 °C
(122 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 8 bar
(116 psi)Min.: 0 bar
(0 psi)
Description
Working fluid (0 to 50 °C) Non-lubricated dry air, inert gases
Filtration requirements 40 micron (min.)
Temperature range -10 to 50 °C (ambient)
Opening time 3 ms
Closing time 1,5 ms
Maximum working frequency 200 Hz
Weight ~ 9 gr.
Product life expectancy up to V2 billion cycles
IP rating IP52 (std.) - IP62 (opt.)
